Outlook

Feature

    Multi-purpose M2M Communication Gateway

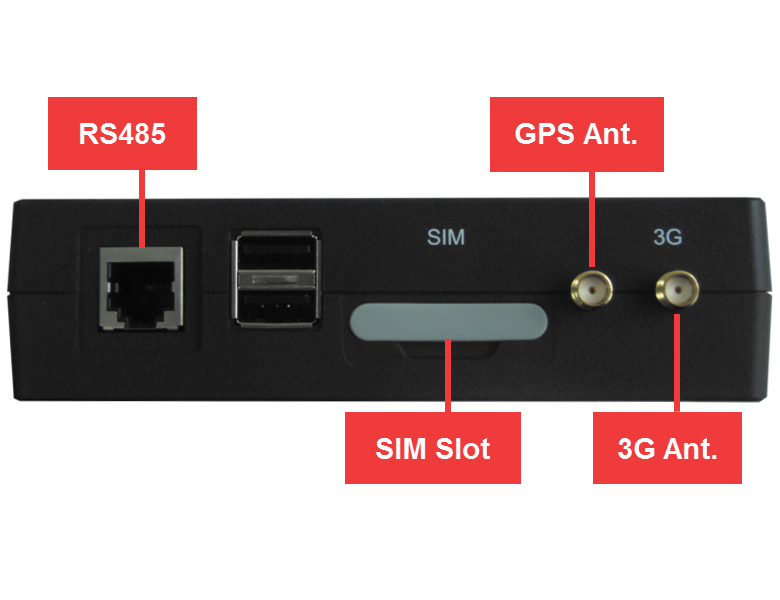

  • Wired Connection via LAN, RS485 (RJ-11 jack)
  • Wireless Connection via 3G/GPS & WiFi/BT
  • Voice Communication via VOIP
  • Special Internal Antennas Design for 3G & WiFi/BT
  • Wide Operational Temp -20°C - 70°C
  • Special Vibration & Shock for the Trucks Endurance Design
  • Eco and User Friendly

  • No Noise, No Fan, Low Power Consumption and 24/7 Fan less Design
  • A Flip door for 3G Mini SIM Card for Vandal & Tampering Protection
  • Remote SW Update via a LAN, WiFi or 3G Connection
  • Manual Firmware/SW Update via a USB Flash Drive
  • Cloud Service and Friendly APIs

  • Remote SW Update via LAN WiFi or 3G (optional)
  • Friendly APIs for Application Development






AEG-300 Model Selection

      Full model WB model
    Wireless connection 3G/GPS ---
    WiFi/BT
    Wired connection LAN
    RS485(RJ-11Jack)

Specification

    Category Full model WB model
    CPU/Memory FreescaleARM Cortex A8™ core MCIMX535DVV1C 1GHz
    DDR3 RAM: 512MB
    eMMC NAND Flash: 4GB
    OS Linux 2.6.35
    I/O Ports UART:D-sub 15pins with Smart Design with Power in 9~24 DC
    USB2.0: Dual Dock Type A Host
    LAN: RJ45 10/100Base-T with LEDs
    RJ-11: Support RS485 (2 wires)
    3G function (Cinterion PH8-P) 3G Band With mini SIM card slot Five Bands UMTS/HSPA+ (WCDMA/FDD) (850/800/900/1900/2100 MHz) Quad-Band GSM (850/900/1800/1900 MHz) ---
    3G Internal antenna Built-in(Default) ---
    3G External antenna SMA-P connector ---
    GPS function(Cinterion PH8-P) SatNav system Standalone GPS and GLONASS ---
    GPS External antenna SMA-P connector ---
    WiFi/BT function IEEE 802.11b/g/n & BT3.0/4.0 with built-in chip antenna
    LED status indicators (G/R/O tri-color) Power Status Link Status (3G Status)
    WiFi/GPIO BT/GPIO
    Data Status Func Status
    Buzzer Controlled by GPIO
    Power consumption Low power consumption
    5.4W
    (12V/0.45A)
    Low power consumption
    4.56W
    (12V/0.38A)
    Power adaptor Input :AC 100 - 240V / Output :DC 12V 2A
    Certification CE / FCC
    Environmental Operation Temperature : -20°C - 70°C
    Storage Temperature : -35°C - 85°C
    Relative Humidity: (20% - 85%)Non-condensing
    Mechanical Dimensions: 125mm x 125mm x 35mm (W x H x D)
    Mounting: Desk/ Din Rail/ VESA 50 x 50mm
    Weight: 272g ± 5g

All specifications and photos are subject to change without notice.

Application

Smart Retail

Built-in gateway for vending machines; sends inventory information to back-end systems via 3G/LTE.

Smart Building

Monitors infrastructure; sends any abnormal status immediately. Predictive maintenance.

Smart Logistics

Built-in gateway lets you monitor the current position in real time.

Smart Agriculture

Monitors temperature and humidity; maintains an optimum environment.

Smart Energy

Connects solar panels to a back-end system, able to monitor power generation and improve utilization.

Smart Home

Monitors energy consumption like gas, electricity, water; sends the status to the server and automatically controls usage.

Smart Street Lighting

Built-in gateway for street lights, monitors weather conditions and traffic flow, supplies better lighting and lighting control, saves energy, and reduces CO2 emissions.
